FAQs - Frequently Asked Questions
Frequently asked questions about libinput.
This is a symptom of high-dpi mice (greater than 1000dpi). These devices need a udev hwdb entry to normalize their motion. See Normalization of relative motion for a detailed explanation.
This is a symptom of an invalid trackpoint multiplier. These devices need Device quirks to specify the range available so libinput can adjust the pointer acceleration accordingly. See Motion range on trackpoints for a detailed explanation.
This is a known problem affecting some devices and/or use-case but the exact cause is still unknown. It may be a device-specific issue, it may be a bug in libinput’s acceleration code, it may be a disagreement about how pointer acceleration should feel. Unfortunately this is something that affected users need to investigate and analyze.
The most common cause for this is an incorrect pressure threshold range. See Touchpad pressure-based touch detection for more info.
The X.Org synaptics driver implemented kinetic scrolling in the driver. It measures the scroll speed and once the finger leaves the touchpad the driver keeps sending scroll events for a predetermined time. This effectively provides for kinetic scrolling without client support but triggers an unfixable bug: the client cannot know that the events are from a kinetic scroll source. Scroll events in X are always sent to the current cursor position, a movement of the cursor after lifting the finger will send the kinetic scroll events to the new client, something the user does not usually expect. A key event during the kinetic scroll procedure causes side-effects such as triggering zoom.
libinput does not implement kinetic scrolling for touchpads. Instead it provides the libinput_event_pointer_get_axis_source() function that enables callers to implement kinetic scrolling on a per-widget basis, see Scroll sources.
No, libinput is MIT licensed. The Linux kernel header file linux/input.h in libinput’s tree is provided to ensure the same behavior regardless of which kernel version libinput is built on. It does not make libinput GPL-licensed.
libinput does not store configuration options, it is up to the caller to manage these and decide which configuration option to apply to each device. This must be done at startup, after a resume and whenever a new device is detected.

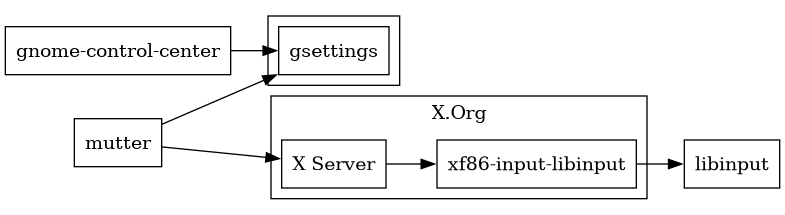

One commonly used way to configure libinput is to have the Wayland compositor expose a compositor-specific configuration option. For example, in a GNOME stack, the gnome-control-center modifies dconf entries. These changes are read by mutter and applied to libinput. Changing these entries via the gsettings commandline tool has the same effect.
Another commonly used way to configure libinput is to have xorg.conf.d snippets. When libinput is used with the xf86-input-libinput driver in an X.Org stack, these options are read on startup and apply to each device. Changing properties at runtime with the xinput commandline tool has the same effect.
In both cases, the selection of available options and how they are exposed depends on the libinput caller (e.g. mutter or xf86-input-libinput).
This has an effect on the availability of configuration options: if an option is not exposed by the intermediary, it cannot be configured by the client. Also some configuration options that are provided by the intermediary may not be libinput-specific configuration options.
See Where is the configuration stored? Use the configuration tool provided by your desktop environment (e.g. gnome-control-center) or direct access to your desktop environment’s configuration storage (e.g. gsettings).
$> cat /etc/X11/xorg.conf.d/99-libinput-custom-config.conf Section "InputClass" Identifier "something to identify this snippet" MatchDriver "libinput" MatchProduct "substring of the device name" Option "some option name" "the option value" EndSection
The identifier is merely a human-readable string that shows up in the log file. The MatchProduct line should contain the device name or a substring of the device name that the snippet should apply to. For a full list of option names and permitted values, see the libinput man page. xorg.conf.d snippets like the above apply to hotplugged devices but can be overwritten at runtime by desktop tools. Multiple snippets may be placed into the same file.
For run-time configuration and testing, the xinput debugging tool can modify a devices’ properties. See the libinput man page for supported property names and values. Usually, an invocation looks like this:
$> xinput set-prop "the device name" "the property name" value [value2] [value3]
Changes performed by xinput do not persist across device hotplugs. xinput is considered a debugging and testing tool only and should not be used for permanent configurations.
No. At least that’s going to be the initial answer. Read Why libinput doesn’t have a lot of configuration options first. Configuration options for most features are a signal that we are incapable of handling it correctly. To get to that point, we want to be sure we’re truly incapable of doing so. libinput has several features that are handled automatically (and correctly) that users wanted to have configuration options for initially.
So the answer to this question will almost always be ‘no’. A configuration option is, in most cases, a cop-out.
Synclient and syndaemon rely on X input device properties that are specific to the xf86-input-synaptics X.Org input driver. Both were written when the synaptics driver was the only common touchpad driver in existence. They assume that if the properties aren’t available, no touchpad is available either. The xf86-input-libinput X.Org input driver does not export these driver-specific properties, synclient/syndaemon will thus not detect the touchpad and refuse to work. Other tools that rely on synclient/syndaemon or those same properties also do not work with xf86-input-libinput.
See also the blog posts The definitive guide to synclient and The future of xinput, xmodmap, setxkbmap, xsetwacom and other tools under Wayland
Yes, though unfortunately many non-Wacom tablets suffer from bad firmware and don’t send the required events. But they should all work nonetheless. If you have a tablet that does not work with libinput, please file a bug.
If you see the message
libinput bug: device does not meet tablet criteria. Ignoring this device.
or the message
missing tablet capabilities [...] Ignoring this device.
your tablet device does not have the required capabilities to be treated as a tablet. This is usually a problem with the device and the kernel driver. See Required tablet capabilities for more details.
As of libinput 1.12, libinput-specific properties are now stored in the Device quirks system. There are no libinput-specific hwdb entries anymore and any changes to the hwdb must be merged into the systemd repository.
libinput relies on the caller to call libinput_dispatch() whenever data is available. libinput_dispatch() will process the state of all devices, including some time-sensitive features (e.g. palm detection, tap-to-click, disable-while-typing, etc.).
If the time between the event and the call to libinput_dispatch() is excessive, those features may not work correctly. For example, a delay in touch event processing may cause wrong or missing tap-to-click events or a palm may not be detected correctly.
When this warning appears, it simply means that too much time has passed between the event occurring and the current time. In almost all cases this is an indication of the caller being overloaded and not handling events as speedily as required.
The warning has no immediate effect on libinput’s behavior but some of the functionality that relies on the timer may be impeded. This is not a bug in libinput. libinput does not control how quickly libinput_dispatch() is called.
Technically - no. But for your use-case - probably.
Wayland is a display server communication protocol. libinput is a low-level library to simplify handling input devices and their events. They have no direct connection. As a technical analogy, the question is similar to “is glibc required for HTTP”, or (stretching the analogy a bit further) “Is a pen required to write English”. No, it isn’t.
You can use libinput without a Wayland compositor, you can write a Wayland compositor without libinput. On most major distributions, libinput is the standard input stack used with the X.Org X server through the xf86-input-libinput driver.
So why “for your use-case - probably”? All general-purpose Wayland compositors use libinput for their input stack. Wayland compositors that are more specialized (e.g. in-vehicle infotainment or IVI) can handle input devices directly but the compositor you want to use on your desktop needs an input stack that is more complex. And right now, libinput is the only input stack that exists for this use-case.

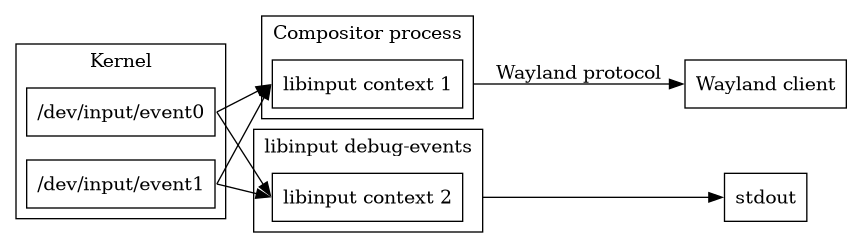

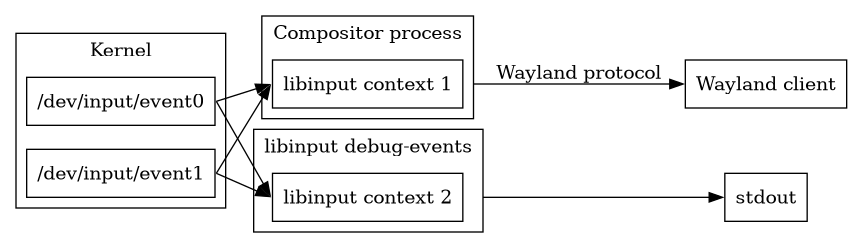

A common question is whether it’s possible to write a program that can change
libinput’s behavior - specifically the libinput that is used inside the
compositor. This indicates a misunderstanding of how libinput works:
libinput is a library that converts kernel events into libinput events, much
sed reads data in, modifies it, and provides it to stdout.
sed is used by a shell-script, that script has full control over how
sed processes data. In this analogy,
sed is libinput and the
shell script is the compositor. It is not possible to write a program
to modify the behavior of the
sed instance used inside that shell script
Writing a program that uses libinput is akin to writing a new script that
sed. It will not have any effect on the original
The only way to modify libinput’s behavior is to use the configuration options exposed by the respective compositor. Those affect the libinput context inside the compositor and thus have an effect on the input device behavior.
No, or at least, not as a libinput option.
When using a mouse, libinput notifies callers about physical scroll wheel movement. When using another device, libinput notifies scroll in scroll units.
It is up to the caller to transform those events into a number of pixels to scroll and, if desired, provide a way to adjust scroll speed.
This transformation cannot be done in libinput because it may depend on context only known by the caller. For example, a caller may want to scroll faster depending on how many pages a document has or depending on the widget that receives the scroll events.
